產品介紹
流量范圍: 0-3000L/H
壓力范圍: 0-50MPA
電 機: 3KW, 4KW, 380V / 400V, 50/60Hz
驅動系統: 三相電機或防爆電機
流量控制:手動控制或自動控制
防護等級: IP55, IP54
材料
泵頭: SUS304, SUS316,SUS304+PTFE,SUS316+PTFE
隔膜: PTFE
單向閥: SUS304, SUS316, PVC, PTFE
閥球: 氧化鋯、304、316、陶瓷、二氧化硅
工作條件
環境溫度: -30℃ --- 90℃

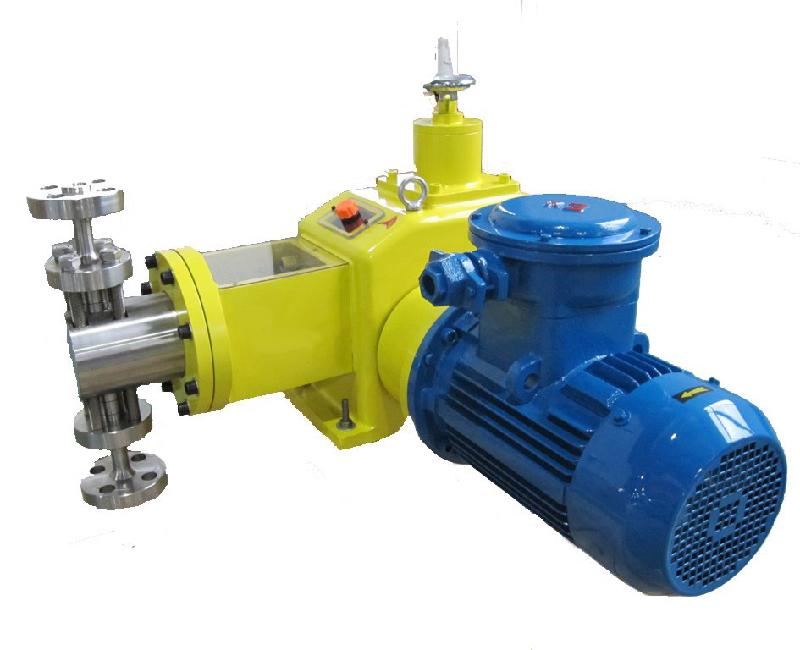

| J－D型柱塞計量泵 |
|
【技術參數】
|
型 號
|
流量
L/h
|
排出壓力
Mpa
|
柱塞直徑
mm
|
行程
mm
|
泵速
min-1
|
電動機
|
進、出口
管徑mm
|
聯接方式
(法蘭)
|
重量(不含電機
|
|
型號
|
功率
KW
|
|
J-D50/40
|
50
|
32-40
|
16
|
64
|
75
|
Y100L1-4
|
2.2
|
20
|
DN20
|
~210kg
|
|
J-D50/50
|
50
|
Y112M-4
|
4
|
|
J-D63/32
|
63
|
25-32
|
93
|
Y100L1-4
|
2.2
|
|
J-D63/50
|
40-50
|
Y112M-4
|
4
|
|
J-D80/25
|
80
|
20-25
|
116
|
Y100L1-4
|
2.2
|
|
J-D80/50
|
32-50
|
Y112M-4
|
4
|
|
J-D100/20
|
100
|
16-20
|
23
|
75
|
Y100L1-4
|
2.2
|
|
J-D100/40
|
25-40
|
Y112M-4
|
4
|
|
J-D125/16
|
125
|
12.5-16
|
93
|
Y100L1-4
|
2.2
|
|
J-D125/32
|
20-32
|
|
Y112M-4
|
4
|
|
J-D160/12.5
|
160
|
10-12.5
|
116
|
Y100L1-4
|
2.2
|
|
J-D160/25
|
16-25
|
Y112M-4
|
4
|
|
J-D200/10
|
200
|
8-10
|
32
|
75
|
Y100L1-4
|
2.2
|
25
|
DN25
|
|
J-D200/20
|
12.5-20
|
Y112M-4
|
4
|
|
J-D250/8
|
250
|
6.3-8
|
93
|
Y100L1-4
|
2.2
|
|
J-D250/16
|
10-16
|
Y112M-4
|
4
|
|
J-D320/6.3
|
320
|
5-6.3
|
116
|
Y100L1-4
|
2.2
|
|
J-D320/12.5
|
8-12.5
|
Y112M-4
|
4
|
|
J-D400/5
|
400
|
4-5
|
45
|
75
|
Y100L1-4
|
2.2
|
|
J-D400/10
|
6.3-10
|
Y112M-4
|
4
|
|
J-D500/4
|
500
|
3.2-4
|
93
|
Y100L1-4
|
2.2
|
|
J-D500/8
|
5-8
|
Y112M-4
|
4
|
|
J-D630/3.2
|
630
|
2.5-3.2
|
116
|
Y100L1-4
|
2.2
|
~230kg
|
|
J-D630/6.3
|
4-6.3
|
Y112M-4
|
4
|
|
J-D800/2.5
|
800
|
2-2.5
|
64
|
75
|
Y100L1-4
|
2.2
|
32
|
DN32
|
|
J-D800/5
|
3.2-5
|
Y112M-4
|
4
|
|
J-D1000/2
|
1000
|
1.6-2
|
93
|
Y100L1-4
|
2.2
|
|
J-D1000/4
|
2.5-4
|
Y112M-4
|
4
|
|
J-D1250/1.6
|
1250
|
1.25-1.6
|
116
|
Y100L1-4
|
2.2
|
|
J-D1250/3.2
|
2-3.2
|
Y112M-4
|
4
|
|
J-D1600/1.25
|
1600
|
1-1.25
|
90
|
75
|
Y100L1-4
|
2.2
|
50
|
DN50
|
|
J-D1600/2.5
|
1.6-2.5
|
Y112M-4
|
4
|
|
J-D2000/1
|
2000
|
0.8-1
|
93
|
Y100L1-4
|
2.2
|
|
J-D2000/2
|
1.25-2
|
Y112M-4
|
4
|
|
J-D2500/0.8
|
2500
|
0.63-0.8
|
116
|
Y100L1-4
|
2.2
|
|
J-D2500/1.6
|
1-1.6
|
Y112M-4
|
4
|
|
J-D3200/0.63
|
3200
|
0.5-0.63
|
125
|
75
|
Y100L1-4
|
2.2
|
65
|
DN65
|
|
J-D3200/1.25
|
0.8-1.25
|
Y112M-4
|
4
|
|
J-D4000/0.5
|
4000
|
0.4-0.5
|
93
|
Y100L1-4
|
2.2
|
|
J-D4000/1
|
0.63-1
|
Y112M-4
|
4
|
|
J-D5000/0.4
|
5000
|
0.32-0.4
|
116
|
Y100L1-4
|
2.2
|
|
J-D5000/0.8
|
0.5-0.8
|
Y112M-4
|
4
|
|
J-D6300/0.32
|
6300
|
0.32
|
160
|
93
|
Y100L1-4
|
2.2
|
|
J-D6300/0.63
|
0.4-0.63
|
Y112M-4
|
4
|
|
J-D8000/0.32
|
8000
|
0.32
|
116
|
Y112M-4
|
4
|
|
特點
1.柱塞泵使用的排出壓力范圍比較廣泛，且宜制成高壓泵
2.結構簡單，維修方便，價格具有競爭優勢
3.柱塞直徑很小，通常在3-200mm.
4.使用絕緣，冷卻或加熱泵缸控制介質溫度。
|
